Sidechain Multiband Expander Mono x8 - Sidechain Multi-band Expander Mono x8
Detailed: LSP Sidechain Multi-band Expander Mono x8 – Sidechain Multiband Expander Mono x8 (SCMBE8M)
Formats: LADSPA, LV2, LinuxVST, JACK
Developer: Vladimir Sadovnikov
This plugin performs multiband increasing of dynamic range of mono input signal. Flexible sidechain-control configuration and additional sidechain input are provided. Additional dry/wet control allows to mix processed and unprocessed signal together.
As opposite to most available multiband expanders, this expander provides numerous special functions listed below:
- Modern operating mode - special operating mode that allows to look different at classic crossover-based devices. Crossover-based devices use crossover filters for splitting the original signal into independent frequency bands, then process each band independently by it's individual expander. Finally, all bands become phase-compensated using all-pass filers and then summarized, so the output signal is formed. In Modern mode, each band is processed by pair of dynamic shelving filters. This allows the better control the gain of each band.
- Sidechain boost - special mode for assigning the same weight for higher frequencies opposite to lower frequencies. In usual case, the frequency band is processed by expander 'as is'. By the other side, the usual audio signal has 3 db/octave falloff in the frequency domain and could be compared with the pink noise. So the lower frequencies take more effect on expander rather than higher frequencies. Sidechain boost feature allows to compensate the -3 dB/octave falloff of the signal spectrum and, even more, make the signal spectrum growing +3 dB/octave in the almost fully audible frequency range. This is done by specially designed +3 db/oct and +6 db/oct shelving filters.
- Lookahead option - each band of expander can work with some prediction, the lookahead time can be set for each channel independently. To avoid phase distortions, all other bands automatically become delayed for a individually calculated period of time. The overall delay time of the input signal is reported to the host by the plugin as a latency.
- Up to 8 bands are available for use, each band is not attached to it's strict frequency range and can control any frequency range. Also, each band can be controlled by completely different frequency range that can be obtained by applying low-pass and hi-pass filters to the sidechain signal.

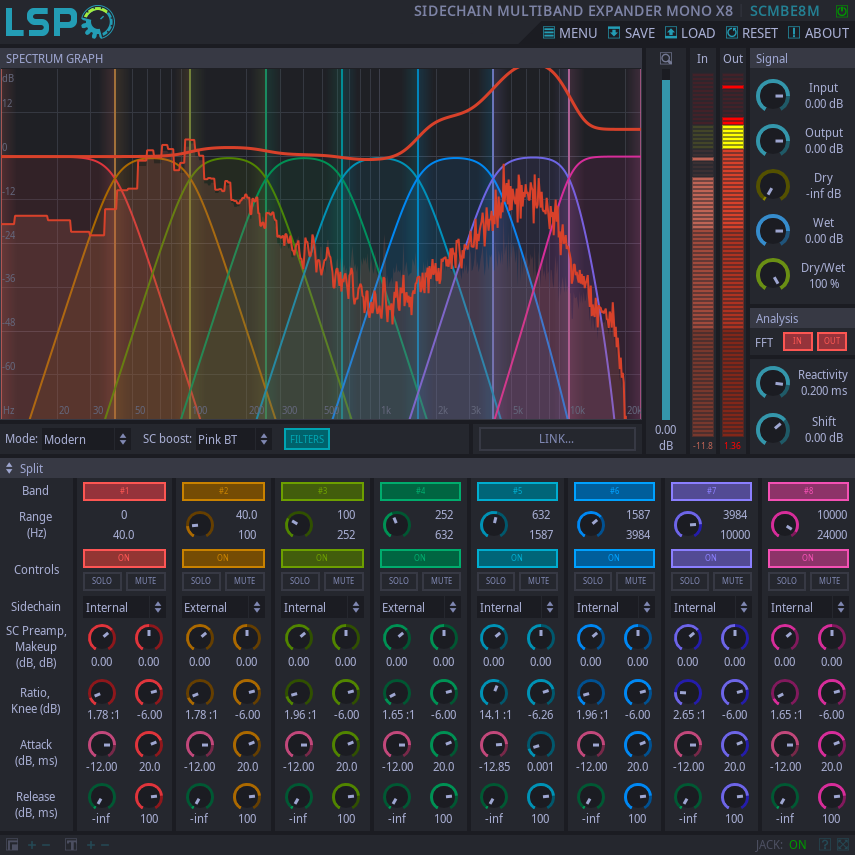

- Bypass - bypass switch, when turned on (led indicator is shining), the plugin bypasses signal.
- Mode - combo box that allows to switch between Modern and Classic operating modes.
- SC Boost - enables addidional boost of the sidechain signal:
- None - no sidechain boost is applied.
- Pink BT - a +3db/octave sidechain boost using bilinear-transformed shelving filter.
- Pink MT - a +3db/octave sidechain boost using matched-transformed shelving filter.
- Brown BT - a +6db/octave sidechain boost using bilinear-transformed shelving filter.
- Brown MT - a +6db/octave sidechain boost using matched-transformed shelving filter.
- FFT In - enables FFT curve graph of input signal on the spectrum graph.
- FFT Out - enables FFT curve graph of output signal on the spectrum graph.
- Filters - enables drawing tranfer function of each sidechain filter on the spectrum graph.
- Zoom - zoom fader, allows to adjust zoom on the frequency chart.
- Input - the amount of gain applied to the input signal before processing.
- Output - the amount of gain applied to the output signal before processing.
- Dry - the amount of dry (unprocessed) signal passed to the output.
- Wet - the amount of wet (processed) signal passed to the output.
- In - the input signal meter.
- Out - the output signal meter.
- Reactivity - the reactivity (smoothness) of the spectral analysis.
- Shift - allows to adjust the overall gain of the analysis.
'Split' section - allows to quckly control all bands and provides most frequently used controls:
- Band - allows to enable the corresponding band, band #0 is always enabled.
- Hue - allows to control the hue of the color assigned to the band.
- Range - allows to adjust the start frequency of the frequency range controlled by the band.
- Controls - set of buttons that control the behaviour of the expander:
- On - enables expander assigned to the corresponding frequency band.
- S - turns on soloing mode to the selected band by applying -36 dB gain to non-soloing bands
- M - turns on muting mode to the selected band by applying -36 dB gain to it
- Ext - enables control of this band by applying signal from external sidechain inputs
- SC Preamp - applies additional gain to the sidechain band.
- Makeup - applies additional gain to the output of the corresponding expander.
- Ratio - the expannder ratio for the corresponding band.
- Knee - the expander knee for the corresponding band.
- Attack Level - threshold of the expander, placed in the middle of the knee.
- Attack Time - attack time of the expander.
- Release Level - relative to the Attack Level threshold that sets up the threshold of Release Time.
- Release Time - release time of the expander.
'Band N' section - allows to control all parameters for the selected frequency band:
- Sidechain External - sidechain signal is taken from additional (external) sidechain inputs of plugin
- Sidechain Mode - combo box that allows to control sidechain working mode:
- Peak - peak mode.
- RMS - root mean square of the input signal.
- Low-pass - input signal processed by low-pass filter.
- Uniform - input signal processed by uniform filter.
- Sidechain Lookahead - look-ahead time of the sidechain relative to the input signal.
- Sidechain Preamp - pre-amplification of the sidechain signal.
- Sidechain Reactivity - reactivity of the sidechain signal.
- Sidechain LCF - button turns on the low-cut filter for the sidechain signal and knob allows to control the frequency of the filter.
- Sidechain HCF - button turns on the high-cut filter for the sidechain signal and knob allows to control the frequency of the filter.
- Expander Mode - allows to operate expander in Upward and Downward modes
- Expander Solo - turns on soloing mode to the selected band by applying -36 dB gain to non-soloing bands
- Expander Mute - turns on muting mode to the selected band by applying -36 dB gain to it
- Expander On - enables expander assigned to the corresponding frequency band.
- Expander Ratio - expander ratio.
- Expander Knee - size of expander knee.
- Expander Makeup - additional amplification gain after processing stage.
- Expander Attack Level - threshold of the expander, placed in the middle of the knee.
- Expander Attack Time - attack time of the expander.
- Expander Release Level - relative to the Attack Level threshold that sets up the threshold of Release Time.
- Expander Release Time - release time of the expander.
- Gain - the amount of gain applied to frequency band by the expander curve.
