Trigger Mono - Triggersensor Mono
Detailed: LSP Triggersensor Mono – Trigger Mono (TS1M)
Formats: LV2, LinuxVST, JACK
Developer: Vladimir Sadovnikov

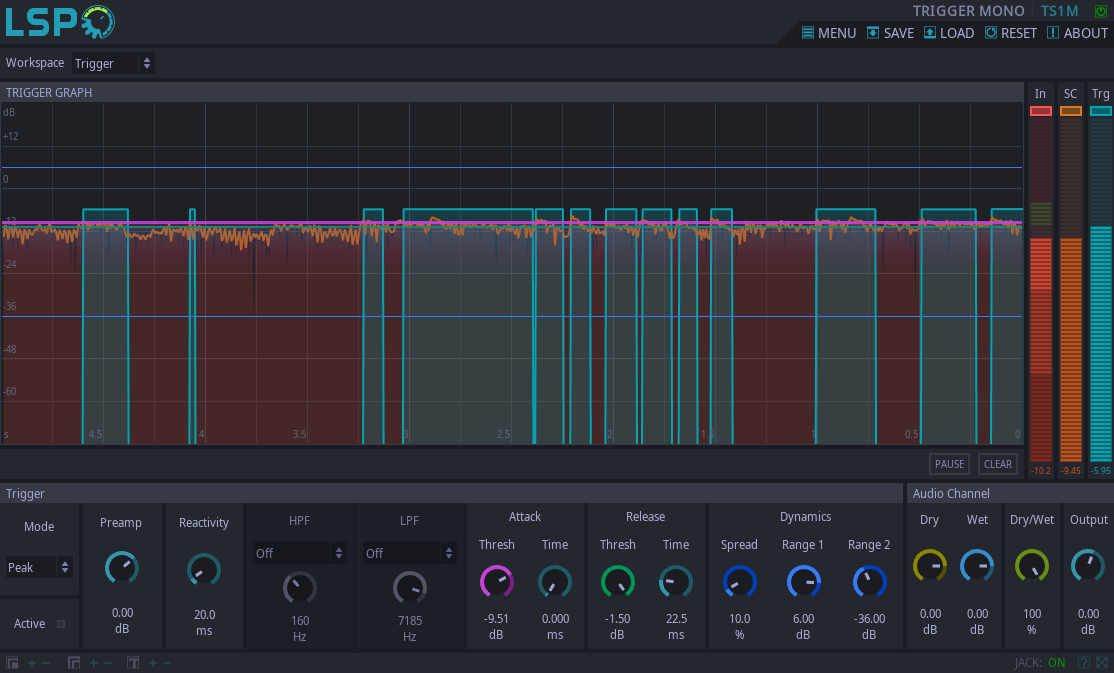

This plugin implements trigger with mono input and mono output. There are up to eight samples available to play for different note velocities.
- Bypass - hot bypass switch, when turned on (led indicator is shining), the plugin does not affect the input signal.
- Working area - this control allows to switch the UI from trigger mode to instrument mode.
- Pause - pauses any updates of the trigger graph.
- Clear - clears all graphs.
- In - enables drawing of input signal graph and corresponding level meter.
- SC - enables drawing of sidechain graph and corresponding level meter.
- Trg - enables drawing of trigger signal graph and corresponding level meter.
- Preamp - input signal amplification for the sidechain.
- Mode - combo box that allows to switch different modes for sidechain. Available modes are:
- Peak - peak mode
- RMS - root mean square of the input signal
- Low-pass - input signal processed by low-pass filter
- Uniform - input signal processed by uniform filter
- LPF - allows to set up slope and cut-off frequency for the low-pass filter applied to input signal.
- HPF - allows to set up slope and cut-off frequency for the high-pass filter applied to input signal.
- Active - trigger activity indicator.
- Reactivity - the reactivity of the sidechain.
- Attack level - the minimum level of the sidechain signal that forces trigger to trigger.
- Attack time - the time gap used by the trigger to prevent false note-on detection.
- Release level - the maximum level (relative to Attack level) of the sidechain signal that forces trigger to shut down.
- Release time - the time gap used by the trigger to completely turn off after the signal becomes lower than Release level.
- Dynamics spread - this knobs allows to add some dynamics to output signal.
- Dynamics range 1, Dynamics range 2 - the bounds of the range that allows to translate trigger level into velocity.
- Sample # - the selector of the current displayable/editable sample.
- Head cut - the time to be cut from the beginning of the current sample.
- Tail cut - the time to be cut from the end of the current sample.
- Fade in - the time to be faded from the beginning of the current sample.
- Fade out - the time to be faded from the end of the current sample.
- Makeup - the makeup gain of the sample volume.
- Pre-delay - the time delay between the MIDI note has triggered and the start of the sample's playback
- Listen - the button that forces the sample playback of the selected sample
'Sample matrix' section:
- Enabled - enables/disables the playback of the corresponding sample.
- Active - indicates that the sample is loaded, enabled and ready for playback.
- Velocity - the maximum velocity of the note the sample can trigger. Allows to set up velocity layers between different samples.
- Gain - the additional gain adjust for the corresponding sample.
- Listen - the button that forces the playback of the corresponding sample.
- Note on - indicates that the playback event of the correponding sample has triggered.
'Audio channel' section:
- Dry - the gain of the input signal passed to the audio inputs of the plugin.
- Wet - the gain of the processed signal.
- Output gain - the overall output gain of the plugin.
