Autogain Mono

Detailed: LSP Autogain Mono (AG1M)

Formats: CLAP, JACK, LADSPA, LV2, VST2, VST3

Categories: Envelope

Developer: Vladimir Sadovnikov

Description:

This plugin provides automatic gain control tools that support loudness matching according to the ITU-R BS.1770-4 recommendation. That means that the input signal is being processed via the weighting filter (K-filter) before the measurement of it's energy is performed. According to the BS.1770-4 recommendation, the energy measurement period should be of 400 milliseconds but the plugin allows to vary this value. As an additional option, it also provides other kind of weighting filters provided by the the IEC 61672:2003 standard: A, B, C and D weighting filters.

If the level of the signal rapidly changes, the plugin can also rapidly reduce the shocking effect of the loud sound and (if enabled) rapidly raise the gain, too. Despite, because it uses RMS measurements, it does not fully protect from sudden loud clicks/pops, and aditional surge protection should be applied. Additional control over the zero level also makes the plugin act as a trigger: if the signal is below the mimum level, then the gain value does not change. This prevents from significant amplification of a background noise in the case of long silence at the input.

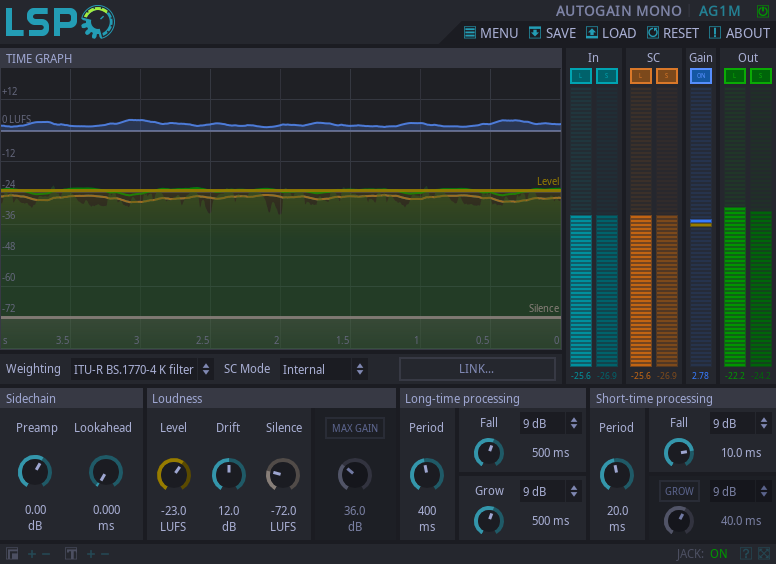

Controls:

• Bypass - bypass switch, when turned on the plugin bypasses signal without any change.
• Weighting - weighting function for the signal:
• None - no weighting applied.
• IEC 61672:2003 A filter - A filter defined by IEC 61672:2003 standard.
• IEC 61672:2003 B filter - B filter defined by IEC 61672:2003 standard.
• IEC 61672:2003 C filter - C filter defined by IEC 61672:2003 standard.
• IEC 61672:2003 D filter - D filter defined by IEC 61672:2003 standard.
• ITU-R BS.1770-4 K filter - K filter defined by ITU-R BS.1770-4 standard.
• SC Mode - sidechain mode:
• Internal
- the input signal is also fed to the sidechain.
• Link - the name of the shared memory link to pass control/match signal.

Meters:

• In - the loudness (measured for short and long periods) of the input signal in LUFS/LKFS units.
• Sc - the loudness (measured for short and long periods) of the sidechain signal in LUFS/LKFS units.
• Gan - the level of the gain correction signal.
• Out - the loudness (measured for short and long periods) of the output signal in LUFS/LKFS units.

Sidechain Section:

• Preamp - additional gain applied to the sidechain signal.
• Lookahead - sidechain lookahead time, allows to delay the original signal to make work more smooth.

Loudness Section:

• Level - the desired loudness level of the signal.
• Drift - the maximum difference between the long-time and short-time loudness levels before the automatic gain control starts reacting rapidly.
• Silence - the threshold of the silence level. All sounds with loudness below this threshold are considered to be silence.
• Max gain - allows to limit the maximum possible gain amplificaiton applied to the signal.

Long-time processing Section:

• Period - the measurement period of time for long-time loudness measurements.
• Fall - controls that allow to configure speed of the gain fall when the gain correction needs to be lowered according to the changes of the long-time loudness measurements.
• Grow - controls that allow to configure speed of the gain grow when the gain correction needs to be raised according to the changes of the long-time loudness measurements.

Short-time processing Section:

• Period - the measurement period of time for short-time loudness measurements.
• Fall - controls that allow to configure speed of the gain fall when the gain correction needs to be rapidly lowered according to the changes of the short-time loudness measurements.
• Grow - controls that allow to enable and configure speed of the gain grow when the gain correction needs to be rapidly raised according to the changes of the short-time loudness measurements.
